How To Rewind Stator Coil Of Motorcycle

Our single phase alternators are similar to the Delta in wiring BUT we do not draw power from the three points in the Delta N1N2N3.

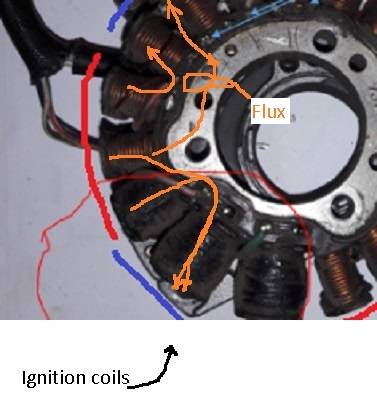

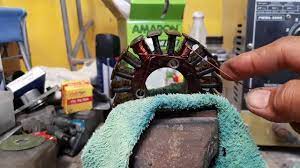

How to rewind stator coil of motorcycle. One issue with re-winding the stock stator is that the ignition charge coil is wound on top of the stator windings. Pay close attention to the timing reference marks so you can put the stator back in correctly. Do not attempt to rewind your stator unless you feel confidant in your ability to do so correctly.

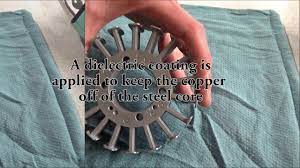

Remove all the old coils and weigh the wire as wire is sold by the kilogram. We use only the best materials available and can rewind a wide range of stators. Beta 450 RR diy stator coil rewind KTM exc stator coil self wind exciter coil repair.

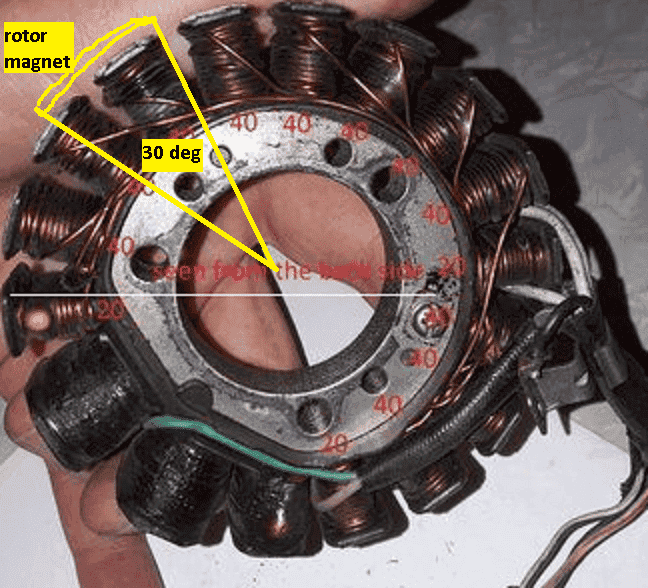

Errors in the number of turns or placement of the poles for each phase can result in your voltage regulatorrecitfier letting the magic blue smoke out. While toying the idea of dualsporting the bike upon repairs IFRC the Yamaha lighting coil couldnt keep up the special wrap 50w aftermarkets did better and my homemade one would love to think I did a lot better but. Carefully preserve all the insulation pieces.

Study the direction the wire is wrapped around the coil head to determine if the top or bottom end of the wire. In our alternators the delta is opened. With the reasonable prices and good quality of aftermarket stators its not often worth rewinding a stator yourself as it is a decent amount of labor.

Reza July 14 2018. Unwind the damaged wire from. The rewind shop may do that for you for a small fee a drink.

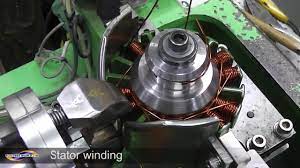

Remove the three phillips screws with an impact hammer if theyre stuck and remove the stator. After you wind up the stator you need to dip it in a varnish insulating material. Stator Winding Machine Coil Winder Motorcycle Magneto Engine Generator For Manufacturer From China 108185647.
